Texas instruments

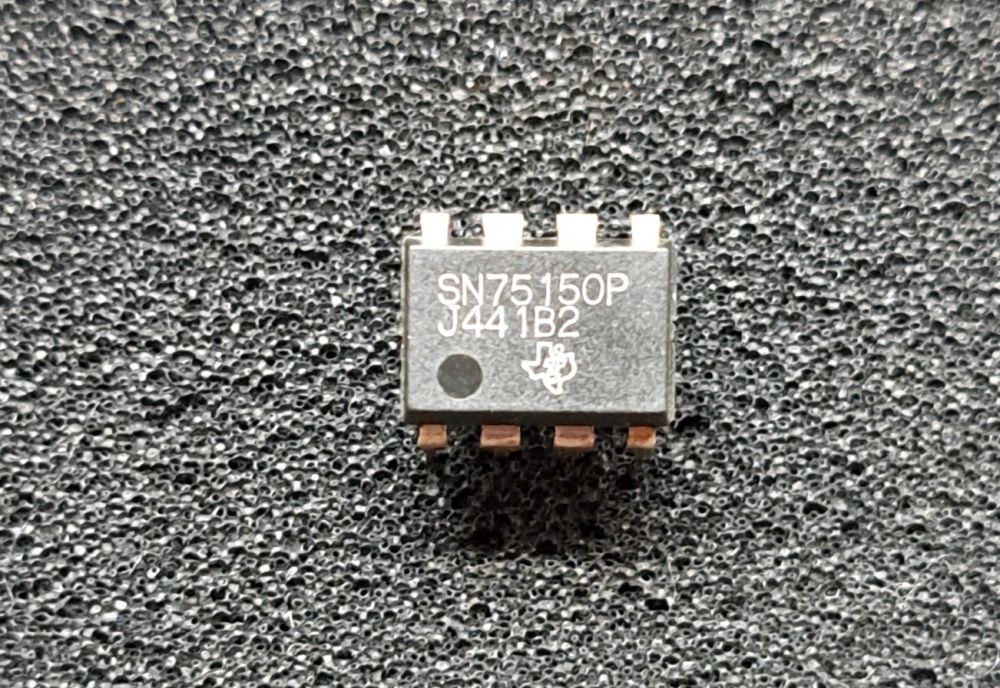

SN75150P 有鉛品 ◆ 廃止品 デュアル・ライン・ドライバ
商品説明
DUAL LINE DRIVER
Meets or Exceeds the Requirement of TIA/EIA-232-F and ITU Recommendation V.28
Withstands Sustained Output Short Circuit to Any Low-Impedance Voltage Between -25V and +25V
2-us Maximum Transition Time Through the 3-V to -3-V Transition Region Under Full 2500-pF Load
Inputs Compatible With Most TTL Families
Common Strobe Input
Inverting Output
Slew Rate Can Be Controlled With an External Capacitor at the Output
Standard Supply Voltages . . . ±12 V
資料
Meets or Exceeds the Requirement of TIA/EIA-232-F and ITU Recommendation V.28
Withstands Sustained Output Short Circuit to Any Low-Impedance Voltage Between -25V and +25V
2-us Maximum Transition Time Through the 3-V to -3-V Transition Region Under Full 2500-pF Load
Inputs Compatible With Most TTL Families
Common Strobe Input
Inverting Output
Slew Rate Can Be Controlled With an External Capacitor at the Output
Standard Supply Voltages . . . ±12 V
